Product Summary
The AT45DB021B-SU is a 2.7-volt only, serial interface Flash memory ideally suited for a wide variety of digital voice-, image-, program code- and data-storage applications. Its 2,162,688 bits of memory are organized as 1024 pages of 264 bytes each. In addition to the main memory, the AT45DB021B-SU also contains two SRAM data buffers of 264 bytes each. The buffers allow receiving of data while a page in the main memory is being reprogrammed, as well as reading or writing a continuous data stream. To allow for simple in-system reprogrammability, the AT45DB021B-SU does not require high input voltages for programming. The device operates from a single power supply, 2.7V to 3.6V, for both the program and read operations.
Parametrics
AT45DB021B-SU absolute maximum ratings: (1)Temperature under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages(including NC Pins) with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V.
Features
AT45DB021B-SU features: (1)Single 2.7V - 3.6V Supply; (2)Serial Peripheral Interface (SPI) Compatible; (3)20 MHz Max Clock Frequency; (4)Page Program Operation; (5)Supports Page and Block Erase Operations; (6)Two 264-byte SRAM Data Buffers-Allows Receiving of Data while Reprogramming of Nonvolatile Memory; (7)Continuous Read Capability through Entire Array-Ideal for Code Shadowing Applications; (8)Low Power Dissipation; (9)Hardware Data Protection Feature; (10)100% Compatible to AT45DB021 and AT45DB021A; (11)5.0V-tolerant Inputs: SI, SCK, CS, RESET and WP Pins; (12)Commercial and Industrial Temperature Ranges; (13)Green (Pb/Halide-free/RoHS Compliant) Packaging Options.

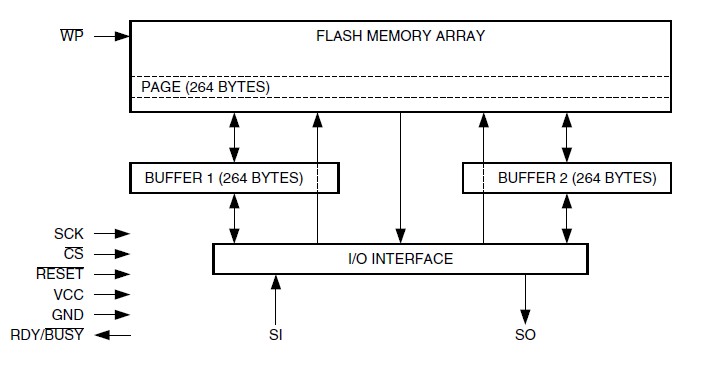

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AT45DB021B-SU |
Atmel |
Flash 2M 8 I/O Pins SPI 264B 2.7V |
Data Sheet |
Negotiable |
|
||||||||||||
