Product Summary
The FM20L08-60-TGC is a 128K x 8 nonvolatile memory that reads and writes like a standard SRAM. A ferroelectric random access memory or FRAM is nonvolatile, which means that data is retained after power is removed. It provides data retention for over 10 years while eliminating the reliability concerns, functional disadvantages, and system design complexities of battery-backed SRAM (BBSRAM). Fast write timing and unlimited write endurance make FRAM superior to other types of memory.
Parametrics
Absolute maximum ratings: (1)VDD, Power Supply Voltage with respect to VSS: -1.0V to +5.0V; (2)VIN, Voltage on any signal pin with respect to VSS: -1.0V to +5.0V and VIN < VDD+1V; (3)TSTG, Storage Temperature: -55℃ to +125℃; (4)TLEAD, Lead Temperature (Soldering, 10 seconds): 300℃.
Features
Features: (1)1Mbit Ferroelectric Nonvolatile RAM; (2)SRAM Replacement; (3)System Supervisor; (4)Superior to Battery-backed SRAM Modules; (5)Low Power Operation; (6)Industry Standard Configurations.

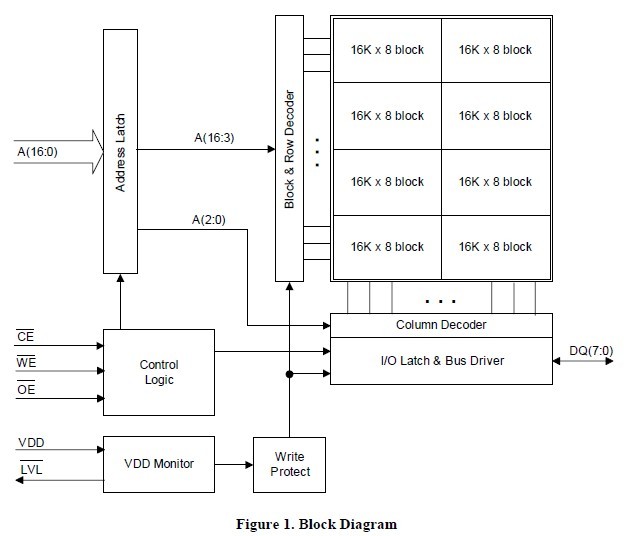

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 FM20L08-60-TGC |
Ramtron |
F-RAM 1M (128Kx8) 60ns 3.3 |
Data Sheet |
Negotiable |
|
||||
|
FM20L08-60-TGC1 |
Ramtron |
F-RAM 1M (128Kx8) 60ns 3.3 |
Data Sheet |
Negotiable |
|
||||
|
FM20L08-60-TGCTR |
Ramtron |
F-RAM 1M (128Kx8) 60ns 3.3 |
Data Sheet |
Negotiable |
|
||||
|
FM20L08-60-TGC1TR |
Ramtron |
F-RAM 1M (128Kx8) 60ns 3.3 |
Data Sheet |
Negotiable |
|
||||
