Product Summary

The LMV393DR2G is a CMOS single channel, general purpose, low voltage comparator. The LMV393DR2G is specified for 2.7 V to 5 V performance, has excellent input common-mode range, low quiescent current, and is available in several space saving packages. The applications of the LMV393DR2G include Battery Monitors, Notebooks and PDAs, General Purpose Portable Devices and General Purpose Low Voltage Applications.

Parametrics

LMV393DR2G absolute maximum ratings: (1)VS, Voltage on any Pin (referred to V- pin): 5.5 V; (2)VIDR, Input Differential Voltage Range: ±Supply Voltage; (3)TJ, Maximum Junction Temperature: 150 ℃; (4)Tstg, Storage Temperature Range: -65 to 150℃; (5)TL, Mounting Temperature (Infrared or Convection (1/16 inch From Case for 30 Seconds)) 260℃; (6)VESD ESD Tolerance: 100 V.

Features

LMV393DR2G features: (1)Guaranteed 2.7 V and 5 V Performance; (2)Input Common-mode Voltage Range Extends to Ground; (3)Open Drain Output for Wired-OR Applications; (4)Low Quiescent Current: 60 μA/channel TYP @ 5 V; (5)Low Saturation Voltage 200 mV TYP @ 5 V; (6)Propagation Delay 200 ns TYP @ 5 V; (7)These are Pb-Free Devices.

Diagrams

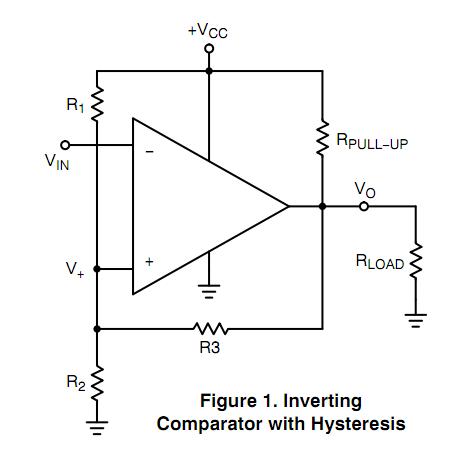

LMV393DR2G block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LMV393DR2G
LMV393DR2G

ON Semiconductor

Comparator ICs LV R2R DUAL COMPARTR

Data Sheet

0-1: $0.37
1-25: $0.28
25-100: $0.23
100-250: $0.20
