Product Summary

The ADF4360-3BCPZ is a fully integrated integer-N synthesizer and voltage controlled oscillator (VCO). The ADF4360-3BCPZ is designed for a center frequency of 1750 MHz. In addition, there is a divide-by-2 option available, whereby the user gets an RF output of between 800 MHz and 975 MHz. The applications of the ADF4360-3BCPZ include Wireless handsets (DECT, GSM, PCS, DCS, WCDMA), Test equipment, Wireless LANs, CATV equipment.

Parametrics

ADF4360-3BCPZ absolute maximum ratings: (1)AVDD to GND1: -0.3 V to +3.9 V; (2)AVDD to DVDD: -0.3 V to +0.3 V; (3)VVCO to GND: -0.3 V to +3.9 V; (4)VVCO to AVDD: -0.3 V to +0.3 V; (5)Digital I/O Voltage to GND: -0.3 V to VDD + 0.3 V; (6)Analog I/O Voltage to GND: -0.3 V to VDD + 0.3 V; (7)REFIN to GND: -0.3 V to VDD + 0.3 V; (8)Maximum Junction Temperature: 150℃; (9)CSP θJA Thermal Impedance: 50℃/W; (10)Lead Temperature, Soldering, Vapor Phase (60 sec): 215℃; Infrared (15 sec): 220℃.

Features

ADF4360-3BCPZ features: (1)Output frequency range: 1600 MHz to 1950 MHz; (2)Divide-by-2 output; (3)3.0 V to 3.6 V power supply; (4)1.8 V logic compatibility; (5)Integer-N synthesizer; (6)Programmable dual-modulus prescaler 8/9, 16/17, 32/33; (7)Programmable output power level; (8)3-wire serial interface; (9)Analog and digital lock detect; (10)Hardware and software power-down mode.

Diagrams

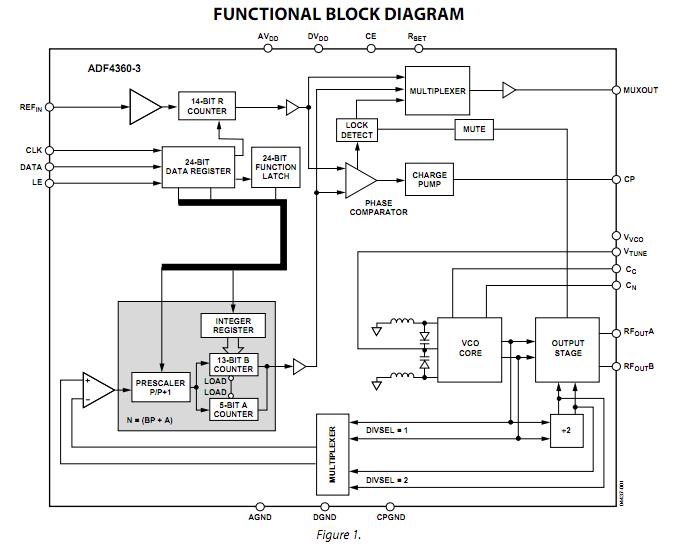

ADF4360-3BCPZ functional block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

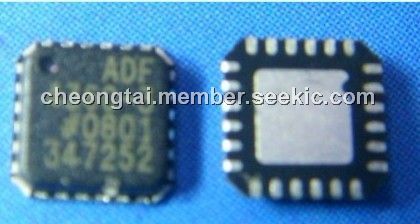

ADF4360-3BCPZ
ADF4360-3BCPZ

IC SYNTHESIZER VCO 24-LFCSP
Data Sheet
0-1: $4.28
1-10: $3.85
10-100: $3.17
100-250: $2.91
250-500: $2.65
500-1000: $2.31
1000-2500: $2.28
ADF4360-3BCPZRL
ADF4360-3BCPZRL

IC SYNTHESIZER VCO 24LFCSP
Data Sheet
0-5000: $2.28
ADF4360-3BCPZRL7
ADF4360-3BCPZRL7

IC SYNTHESIZER VCO 24LFCSP
Data Sheet
0-1500: $2.31
