Product Summary

The MRF6S21100HR3 is a RF Power Field Effect Transistor designed for W-CDMA base station applications with frequencies from 2110 to 2170 MHz.The MRF6S21100HR3 is suitable for TDMA, CDMA and multicarrier amplifier applications. It is used in Class AB for PCN-PCS/cellular radio, WLL and TD-SCDMA applications.

Parametrics

MRF6S21100HR3 absolute maximum ratings: (1)Drain-Source Voltage, VDSS: -0.5, +68 Vdc; (2)Gate-Source Voltage, VGS: -0.5, +12 Vdc; (3)Storage Temperature Range, Tstg: - 65 to +150℃; (4)Case Operating Temperature, Tc: 150℃; (5)Operating Junction Temperature, TJ: 200℃.

Features

MRF6S21100HR3 features: (1)Characterized with Series Equivalent Large-Signal Impedance Parameters; (2)Internally Matched for Ease of Use; (3)Qualified Up to a Maximum of 32 VDD Operation; (4)Integrated ESD Protection; (5)Designed for Lower Memory Effects and Wide Instantaneous Bandwidth Applications; (6)RoHS Compliant; (7)In Tape and Reel. R3 Suffix = 250 Units per 56 mm, 13 inch Reel.

Diagrams

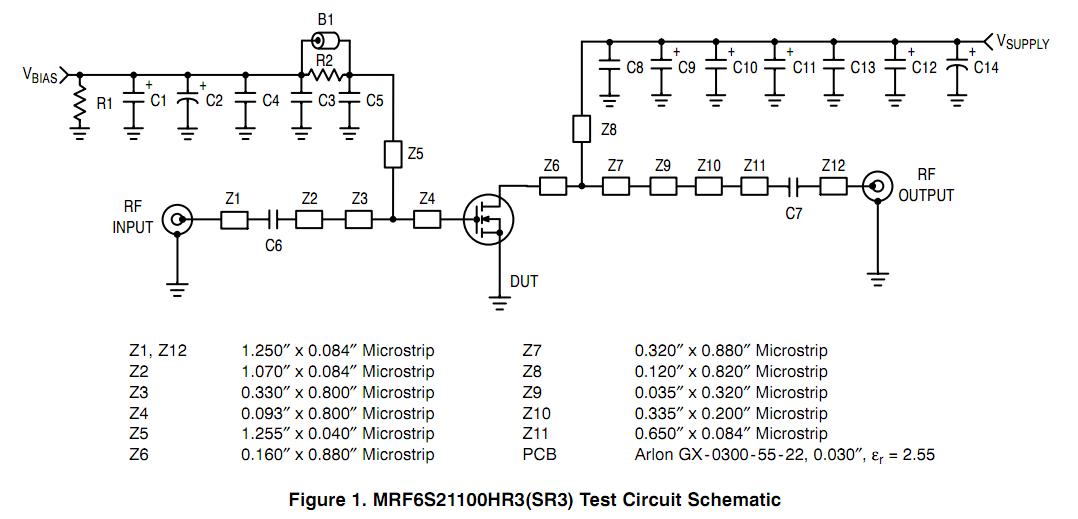

MRF6S21100HR3 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

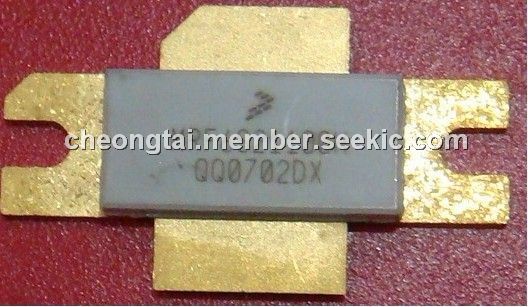

MRF6S21100HR3
MRF6S21100HR3

Freescale Semiconductor

Transistors RF MOSFET Power HV6 23W W-CDMA

Data Sheet

0-188: $27.91
188-250: $27.91
