Product Summary
The AT24C02BN-SH-T is a two-wire automotive temperature serial EEPROM.
Parametrics
Absolute maximum ratings: (1)Operating Temperature: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on Any Pin with Respect to Ground: -1.0V to +7.0V; (4)Maximum Operating Voltage: 6.25V; (5)DC Output Current: 5.0mA.
Features
Features: (1)Medium-voltage and Standard-voltage Operation; (2)Automotive Temperature Range -40℃ to 125℃; (3)Internally Organized 128 x 8 (1K), 256 x 8 (2K), 512 x 8 (4K) or 1024 x 8 (8K); (4)Two-wire Serial Interface; (5)Schmitt Trigger, Filtered Inputs for Noise Suppression; (6)Bidirectional Data Transfer Protocol; (7)400 kHz (2.5V) Compatibility; (8)Write Protect Pin for Hardware Data Protection; (9)8-byte Page (1K, 2K) or 16-byte Page (4K, 8K) Write Modes; (10)Partial Page Writes are Allowed; (11)Self-timed Write Cycle (5 ms max); (12)High-reliability: Endurance: 1 Million Write Cycles; Data Retention: 100 Years; (13)8-lead JEDEC SOIC and 8-lead TSSOP Packages.

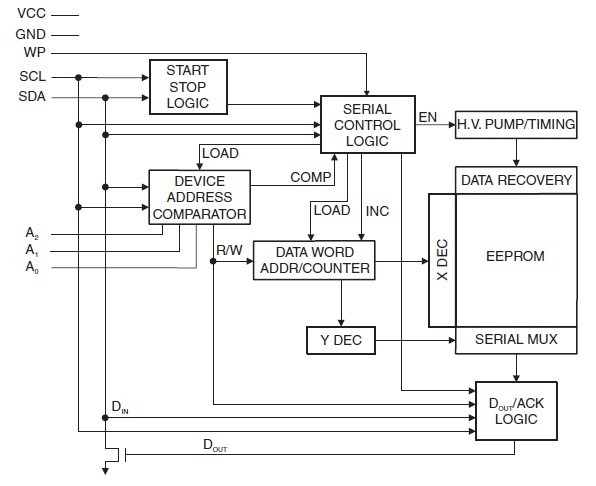

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 AT24C02BN-SH-T |
Atmel |
EEPROM 2Kbit 2-Wire Bus AUTO 2.5V |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
 |
AT24C |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
AT24C01 |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
AT24C01-10PC |
Atmel |
IC SEEPROM 1K 8DIP |
Data Sheet |
Negotiable |
|
||||
|
AT24C01-10PC-1.8 |
Atmel |
IC SEEPROM 1K 1.8V 8DIP |
Data Sheet |
Negotiable |
|
||||
|
AT24C01-10PC-2.5 |
Atmel |
IC SEEPROM 1K 2.5V 8DIP |
Data Sheet |
Negotiable |
|
||||
|
AT24C01-10PC-2.7 |
Atmel |
IC SEEPROM 1K 2.7V 8DIP |
Data Sheet |
Negotiable |
|
||||
