Product Summary

The ADS1100A0IDBVR is a precision, continuously self-calibrating Analog-to-Digital (A/D) converter with differential inputs and up to 16 bits of resolution in a small SOT23-6 package. Conversions are performed ratiometrically, using the power supply as the reference voltage. The ADS1100A0IDBVR uses an I2C-compatible serial interface and operates from a single power supply ranging from 2.7V to 5.5V. The applications of the ADS1100A0IDBVR include portable instrumentation, industrial process control, smart transmitters, consumer goods, factory automation and temperature measurement.

Parametrics

ADS1100A0IDBVR absolute maximum ratings: (1)VDD to GND: –0.3V to +6V; (2)Input Current: 100mA, Momentary; (3)Input Current: 10mA, Continuous; (4)Voltage to GND, VIN+, VIN–: –0.3V to VDD + 0.3V; (5)Voltage to GND, SDA, SCL: –0.5V to 6V; (6)Maximum Junction Temperature: +150℃; (7)Operating Temperature: –40 to +125℃; (8)Storage Temperature: –60 to +150℃; (9)Lead Temperature (soldering, 10s): +300℃.

Features

ADS1100A0IDBVR features: (1)complete data acquisition system in a tiny SOT23-6 package; (2)16-bits no missing codes; (3)INL: 0.0125% of FSR MAX; (4)continuous self-calibration; (5)single-cycle conversion; (6)programmable gain amplifier gain = 1, 2, 4, OR 8; (7)low noise: 4μVp-p; (8)programmable data rate: 8SPS to 128SPS; (9)internal system clock; (10)i2ctm interface; (11)power supply: 2.7V to 5.5V; (12)low current consumption: 90μA; (13)available in eight different addresses.

Diagrams

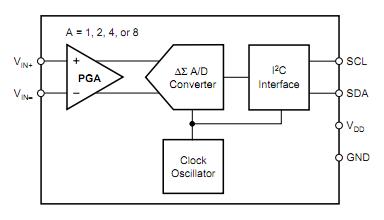

ADS1100A0IDBVR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ADS1100A0IDBVR
ADS1100A0IDBVR

Texas Instruments

ADC (A/D Converters) Self-Calibrating 16-Bit

Data Sheet

0-2410: $1.21
2410-3000: $1.21
ADS1100A0IDBVRG4
ADS1100A0IDBVRG4

Texas Instruments

ADC (A/D Converters) Self-Calibrating 16-Bit

Data Sheet

0-2410: $1.21
2410-3000: $1.21
