Product Summary
The GAL16V8D-15LP is a High Performance E2CMOS PLD. It combines a high performance CMOS process with Electrically Erasable (E2) floating gate technology to provide the highest speed performance available in the PLD market. The GAL16V8D-15LP is capable of emulating any of these PAL architectures with full function/fuse map/parametric compatibility. An important subset of the many architecture configurations possible with the GAL16V8D-15LP are the PAL architectures listed in the table of the macrocell description section. The applications of the GAL16V8D-15LP are DMA Control, State Machine Control, High Speed Graphics Processing, Standard Logic Speed Upgrade.
Parametrics
GAL16V8D-15LP absolute maximum ratings: (1)Supply voltage VCC:–0.5V to +7V; (2)Input voltage applied:–2.5V to VCC +1.0V; (3)Off-state output voltage applied:–2.5V to VCC +1.0V; (4)Storage Temperature:–65℃ to 150℃; (5)Ambient Temperature with Power Applied:–55℃ to 125℃.
Features
GAL16V8D-15LP features: (1)high performance E2CMOS TECHNOLOGY:3.5 ns Maximum Propagation Delay,Fmax = 250 MHz,3.0 ns Maximum from Clock Input to Data Output,UltraMOS Advanced CMOS Technology; (2)50% to 75% reduction in power from bipolar:75mA Typ Icc on Low Power Device, 45mA Typ Icc on Quarter Power Device; (3)active pull-ups on all pins; (4)E2 cell technology:Reconfigurable Logic,Reprogrammable Cells,100% Tested/100% Yields,High Speed Electrical Erasure(<100ms),20 Year Data Retention; (5)eight output logic macrocells:Maximum Flexibility for Complex Logic Designs,Programmable Output Polarity,Also Emulates 20-pin PAL Devices with Full Function/Fuse Map/Parametric Compatibility; (6)preload and power-on reset of all registers:100% Functional Testability; (7)electronic signature for identification; (8)lead-free package options.

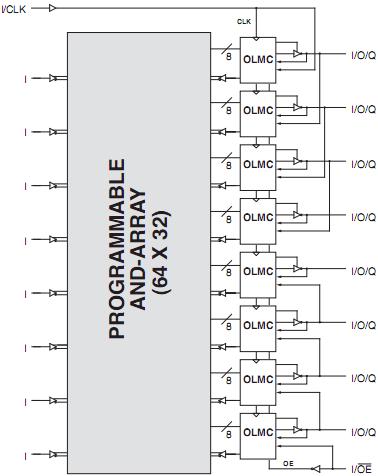

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 GAL16V8D-15LP |
Lattice |
SPLD - Simple Programmable Logic Devices 5V 16 I/O |
Data Sheet |
|
|
||||||
|
GAL16V8D-15LPI |
Lattice |
SPLD - Simple Programmable Logic Devices 16 Input 8 Output 5V Low Power 15ns |
Data Sheet |
|
|
||||||
|
GAL16V8D-15LPNI |
Lattice |
SPLD - Simple Programmable Logic Devices 16 Input 8 Output 5V Low Power 15ns |
Data Sheet |
|
|
||||||
|
GAL16V8D-15LPN |
Lattice |
SPLD - Simple Programmable Logic Devices 16 Input 8 Output 5V Low Power 15ns |
Data Sheet |
|
|
||||||
