Product Summary
The MC100EP809FAG is a low skew 1-to-9 differential clock driver, designed with clock distribution in mind, accepting two clock sources into an input multiplexer. The MC100EP809FAG is designed for use in low voltage applications which require a large number of outputs to drive precisely aligned low skew signals to their destination. The two clock inputs are differential HSTL or PECL and they are selected by the CLK_SEL pin which is LVTTL. To avoid generation of a runt clock pulse when the MC100EP809FAG is enabled/disabled, the Output Enable (OE), which is LVTTL, is synchronous ensuring the outputs will only be enabled/disabled when they are already in LOW state.
Parametrics
MC100EP809FAG absolute maximum ratings: (1)VCC1, Core Power Supply: 4 V; (2)VCC0, HSTL OutputPower Supply: 4 V; (3)VI, PECL Mode Input Voltage: 6 V; (4)Iout, Output Current: 50 mA; 100 mA; (5)TA, Operating Temperature Range: 0 to +85℃; (6)Tstg, Storage Temperature Range: -65 to +150℃; (7)θJA, Thermal Resistance: 80℃/W; (8)θJC, Thermal Resistance: 12 to 17℃/W; (9)Tsol, Wave Solder: 265℃.
Features
MC100EP809FAG features: (1)100 ps Typical Device-to-Device Skew; (2)15 ps Typical within Device Skew; (3)HSTL Compatible Outputs Drive 50Ω to GND with no Offset Voltage; (4)Maximum Frequency > 750 MHz; (5)850 ps Typical Propagation Delay; (6)Fully Compatible with Micrel SY89809L; (7)PECL and HSTL Mode Operating Range: VCCI = 3 V to 3.6 V with GND = 0 V, VCCO = 1.6 V to 2.0 V; (8)Open Input Default State; (9)Pb-Free Packages are Available.

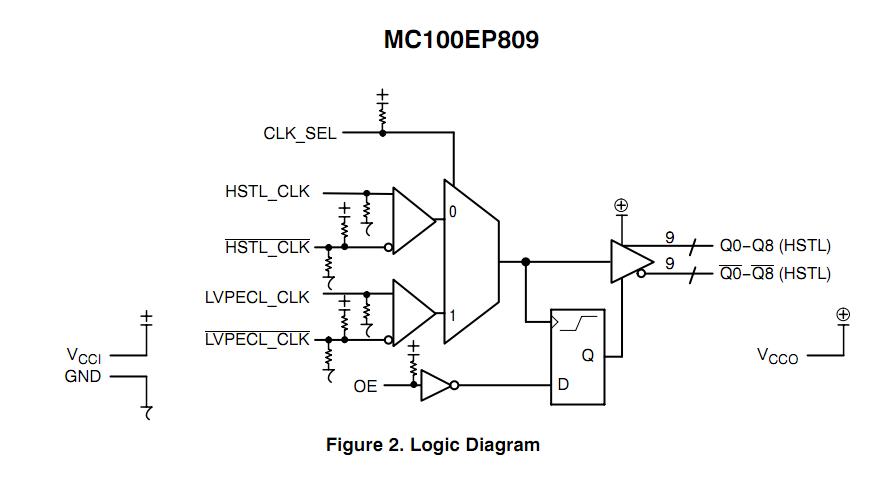

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC100EP809FAG |
ON Semiconductor |
Clock Drivers & Distribution 3.3V HSTL/PECL- HSTL Clk Driver w/LVTTL |
Data Sheet |
|
|
||||||||||||
