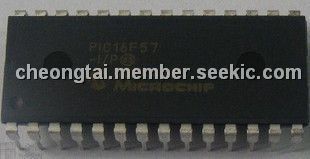

Product Summary

The PIC16F57-I/P is a low-cost, high-performance, 8-bit, fully static, Flashbased CMOS microcontroller. It employs a RISC architecture with only 33 single-word/single-cycle instructions. All instructions are single cycle except for program branches which take two cycles. The PIC16F57-I/P delivers performance in an order of magnitude higher than its competitors in the same price category. The 12-bit wide instructions are highly symmetrical resulting in 2:1 code compression over other 8-bit microcontrollers in its class. The easy to use and easy to remember instruction set reduces development time significantly. The PIC16F57-I/P product is equipped with special features that reduce system cost and power requirements. The Power-on Reset (POR) and Device Reset Timer (DRT) eliminate the need for external Reset circuitry.

Parametrics

PIC16F57-I/P absolute maximum ratings: (1)Ambient Temperature under bias: -40℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on VDD with respect to VSS: 0V to +6.5V; (4)Voltage on MCLR with respect to VSS: 0V to +13.5V; (5)Voltage on all other pins with respect to VSS: -0.6V to (VDD + 0.6V); (6)Total power dissipation: 800 mW; (7)Max. current out of VSS pin: 150 mA; (8)Max. current into VDD pin: 100 mA; (9)Max. current into an input pin (T0CKI only): ±500 μA; (10)Input clamp current, IIK (VI < 0 or VI > VDD): ±20 mA; (11)Output clamp current, IOK (VO < 0 or VO > VDD): ±20 mA; (12)Max. output current sunk by any I/O pin: 25 mA; (13)Max. output current sourced by any I/O pin: 25 mA; (14)Max. output current sourced by a single I/O port (PORTA, B or C): 50 mA; (15)Max. output current sunk by a single I/O port (PORTA, B or C): 50 mA.

Features

PIC16F57-I/P features: (1)Only 33 single-word instructions to learn; (2)All instructions are single cycle except for program branches, which are two-cycle; (3)Two-level deep hardware stack; (4)Direct, Indirect and Relative Addressing modes for data and instructions; (5)Power-on Reset (POR); (6)Device Reset Timer (DRT); (7)Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation; (8)Programmable code protection; (9)Power-saving Sleep mode; (10)8-bit real time clock/counter (TMR0) with 8-bit programmable prescaler.

Diagrams

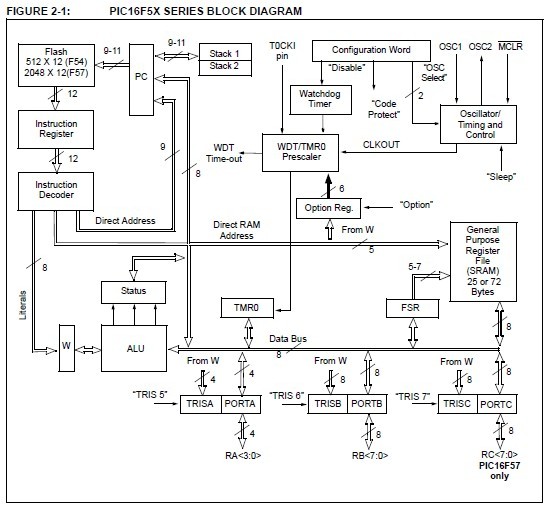

PIC16F57-I/P block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PIC16F57-I/P
PIC16F57-I/P

Microchip Technology

8-bit Microcontrollers (MCU) 3K 72 RAM 20 I/O

Data Sheet

0-1: $0.64
1-10: $0.51
10-25: $0.50
25-100: $0.49
PIC16F57-I/PG
PIC16F57-I/PG

Microchip Technology

8-bit Microcontrollers (MCU) 3K 72 RAM 20 I/O Lead Free Package

Data Sheet

Negotiable
