Product Summary
The OPA703UA is a CMOS, rail-to-rail, I/O operational amplifier. The OPA703UA op amp is optimized for applications requiring rail-to-rail input and output swing. Single, dual, and quad versions are offered in a variety of packages. While the quiescent current is less than 200μA per amplifier, the OPA703UA still offers excellent dynamic performance (1MHz GBW and 0.6V/μs SR) and unity-gain stability. The OPA703UA is optimized for gains of 5 or greater and provides 3MHz GBW and 3V/μs slew rate. The applications of the device include automotive applications: audio, sensor applications, security systems, portable equipment, active filters, transducer amplifier, test equipment and data acquisition.
Parametrics
OPA703UA absolute maximum ratings: (1)Supply Voltage, V+ to V–: 13.2V; (2)Signal Input Terminals, Voltage: (V–) –0.3V to (V+) +0.3V; (3)Current: 10mA; (4)Output Short-Circuit: Continuous; (5)Operating Temperature: –55℃ to +125℃; (6)Storage Temperature: –65℃ to +150℃; (7)Junction Temperature: +150℃; (8)Lead Temperature (soldering, 10s): +300℃.
Features
OPA703UA features: (1)Rail-to-rail input and output; (2)Wide supply range: Single Supply: 4V to 12V. Dual Supplies: ±2 to ±6; (3)Low quiescent current: 160μA; (4)Full-scale cmrr: 90dB; (5)Low offset: 160μV; (6)High speed: OPA703: 1MHz, 0.6V/μs. OPA704: 3MHz, 3V/ μs; (7)Microsize packages: SOT23-5, MSOP-8, TSSOP-14; (8)Low input bias current: 1pA.

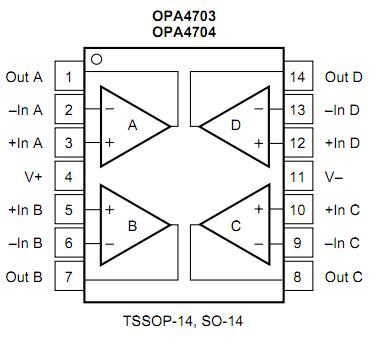

Diagrams
