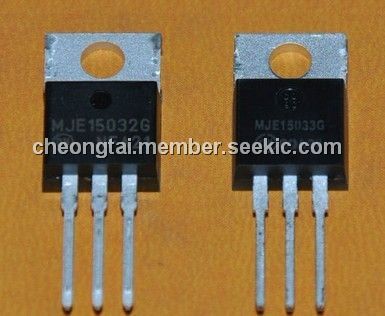

The MJE15032G is a Complementary Silicon Plastic Power Transistor designed for use as high frequency drivers in audio amplifiers.
Parametrics
MJE15032G absolute maximum ratings: (1)Collector-Emitter Voltage, VCEO: 250 Vdc; (2)Collector-Base Voltage, VCB: 250 Vdc; (3)Emitter-Base Voltage, VEB: 5.0 Vdc; (4)Collector Current - Continuous, IC: 8.0Adc; Peak: 16Adc; (5)Base Current, IB: 2.0 Adc; (6)Total Power Dissipation, PD: 50W at Tc=25℃; 0.40W/℃; (7)Total Power Dissipation, PD: 2.0W at TA = 25℃; 0.016W/℃ at Derate above 25℃; (8)Operating and Storage Junction Temperature Range, TJ, Tstg: –65 to +150℃.
Features
MJE15032G features: (1)DC Current Gain Specified to 5.0 Amperes hFE = 70 (Min) @ IC = 0.5 Adc= 10 (Min) @ IC = 2.0 Adc; (2)Collector-Emitter Sustaining Voltage -VCEO(sus) = 250 Vdc (Min); (3)High Current Gain-Bandwidth Product fT = 30 MHz (Min) @ IC = 500 mAdc; (4)TO-220AB Compact Package; (5)Epoxy Meets UL 94 V-0 @ 0.125 in; (6)ESD Ratings: Machine Model C Human Body Model 3B; (7)Pb-Free Packages are Available.
