Product Summary
The W83977TF-A is a I/O chip disk drive adapter which integrates the disk drive adapter, serial port (UART), IrDA 1.0 SIR, parallel port, configurable plug-and-play registers for the whole chip-plus additional powerful features: ACPI, 8042 keyboard controller with PS/2 mouse support, 23 general purpose I/O ports, full 16-bit address decoding, OnNow keyboard wake-up, OnNow mouse wake-up.
Parametrics
W83977TF-A absolute maximum ratings: (1)Power Supply Voltage: -0.5 to 7.0 V; (2)Input Voltage: -0.5 to VDD+0.5 V; (3)Battery Voltage VBAT: 4.0 to 1.8 V; (4)Operating Temperature: 0 to +70℃; (5)Storage Temperature: -55 to +150℃.
Features
W83977TF-A features: (1)Plug & Play 1.0A compatible; (2)Support 13 IRQs, 4 DMA channels, full 16-bit address decoding; (3)Capable of ISA Bus IRQ Sharing; (4)Compliant with Microsoft PC97 Hardware Design Guide; (5)Support DPM (Device Power Management), ACPI; (6)Report ACPI status interrupt by SCI signal issued from any of the 13 IQRs pins or GPIO xx; (7)Programmable configuration settings; (8)Single 24/48 Mhz clock input.

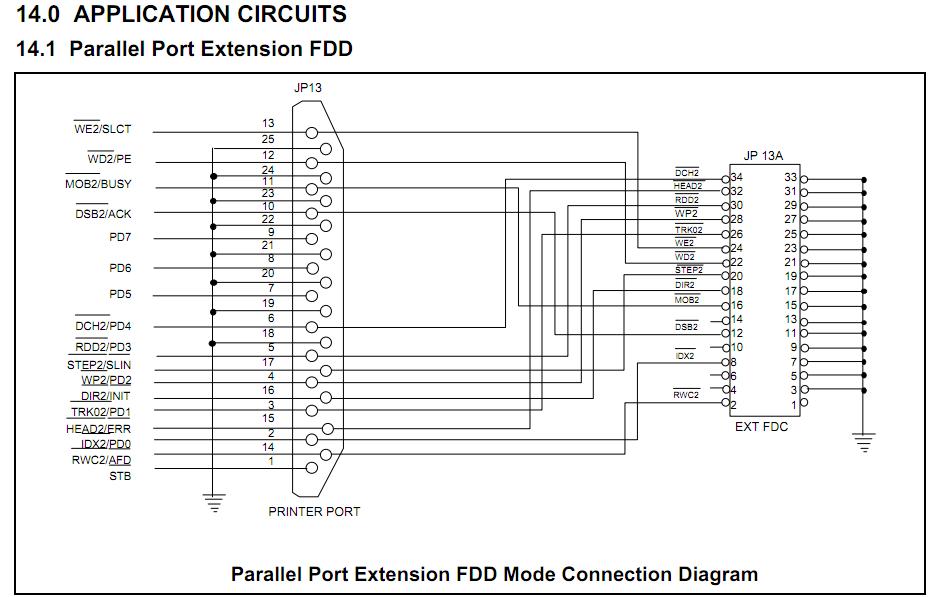

Diagrams
 |
