Product Summary

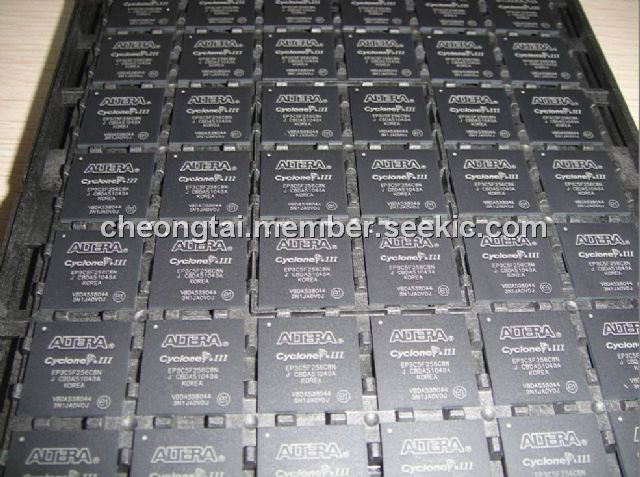

The EP3C5F256C8N is a cyclone III device.

Parametrics

Absolute maximum ratings: (1)Supply voltage for internal logic, VCCINT: –0.5 to 1.8V; (2)Supply voltage for output buffers, VCCIO: –0.5 to 3.9V; (3)Supply voltage (analog) for phase-locked loop (PLL) regulator, VCCA: –0.5 to 3.75V; (4)Supply voltage (digital) for PLL, VCCD_PLL: –0.5 to 1.8V; (5)DC input voltage, VI: –0.5 to 3.95V.

Features

Features: (1)DC output current, per pin, IOUT: –25 to 40 mA; (2)Electrostatic discharge voltage using the human body model, VESDHBM: ±2000 V max; (3)Electrostatic discharge voltage using the charged device model, VESDCDM: ±500 V max; (4)Storage temperature, TSTG: –65 150℃; (5)Operating junction temperature, TJ: –40 125℃.

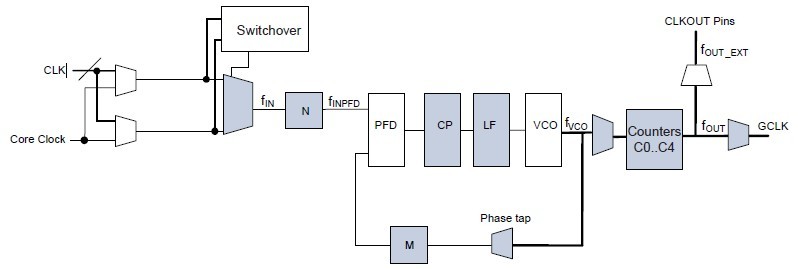

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
EP3C5F256C8N
EP3C5F256C8N

IC CYCLONE III FPGA 5K 256-FBGA
Data Sheet
0-1: $8.94
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
EP3C10E144C7
EP3C10E144C7

IC CYCLONE III FPGA 10K 144-EQFP
Data Sheet
0-1: $13.86
EP3C10E144C7N
EP3C10E144C7N

IC CYCLONE III FPGA 10K 144-EQFP
Data Sheet
0-1: $13.86
EP3C10E144C8
EP3C10E144C8

IC CYCLONE III FPGA 10K 144-EQFP
Data Sheet
0-1: $11.52
EP3C10E144C8N
EP3C10E144C8N

IC CYCLONE III FPGA 10K 144-EQFP
Data Sheet
0-1: $11.52
EP3C10E144I7
EP3C10E144I7

IC CYCLONE III FPGA 10K 144 EQFP
Data Sheet
0-120: $16.86
EP3C10E144I7N
EP3C10E144I7N

IC CYCLONE III FPGA 10K 144 EQFP
Data Sheet
0-1: $17.28
