INA118U

general purpose instrumentation amplifier, 800KHZ, 8SOIC, ±1.35V, 350μA, 110dB

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~2.85 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.00~2.85

PartNumber:: INA118U

Brand:: Texas Instruments - TI | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Cheongtai's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-02-14

From Other Seller

Part Number:INA118U
US $2.00 - 2.85
TDA7360

US $0.80 - 1.50 / Piece
(0) Remove
AD595AD

US $7.00 - 9.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

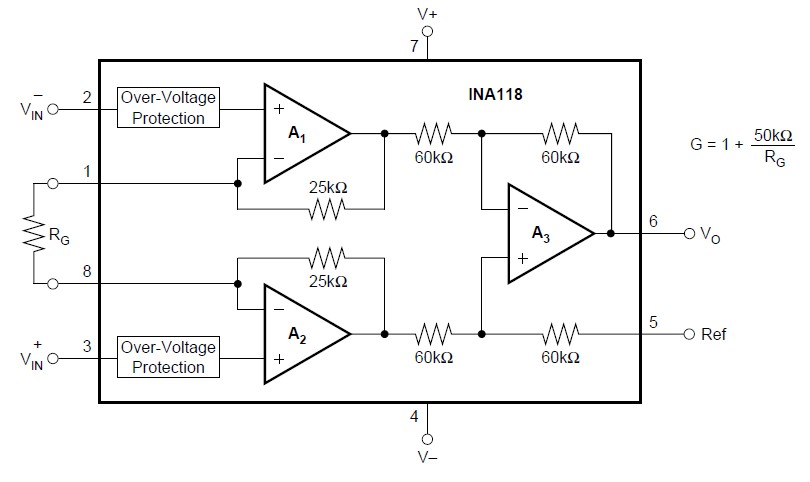

The INA118U is a low power, general purpose instrumentation amplifier offering excellent accuracy. Its versatile 3-op amp design and small size make the INA118U ideal for a wide range of applications. It operates with power supplies as low as ±1.35V, and quiescent current is only 350μA. The applications of the INA118U are bridge amplifier, thermocouple amplifier, rtd sensor amplifier, medical instrumentation, data acquisition.

Parametrics

INA118U absolute maximum ratings: (1)Supply Voltage: ±18V; (2)Analog Input Voltage Range: ±40V; (3)Output Short-Circuit (to ground): Continuous; (4)Operating Temperature: –40℃ to +125℃; (5)Storage Temperature: –40℃ to +125℃; (6)Junction Temperature: +150℃; (7)Lead Temperature (soldering, 10s): +300℃.

Features

INA118U features: (1)low offset voltage: 50μV max; (2)low drift: 0.5μV/℃ max; (3)low input bias current: 5nA max; (4)high cmr: 110dB min; (5)inputs protected to ±40V; (6)wide supply range: ±1.35 to ±18V; (7)low quiescent current: 350μA; (8)8-pin plastic DIP, SO-8.
