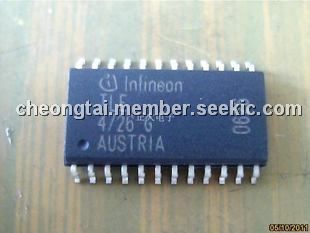

TLE4726G

monolithic IC, PDSO-24-3, 5 V ~ 50 V, TLE4726G, Infineon

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.16~3.98 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.16~3.98

PartNumber:: TLE4726G

Brand:: Infineon Technologies AG - Infineon | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Cheongtai's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-17

From Other Seller

Part Number:TLE4726G
US $0.16 - 3.98
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

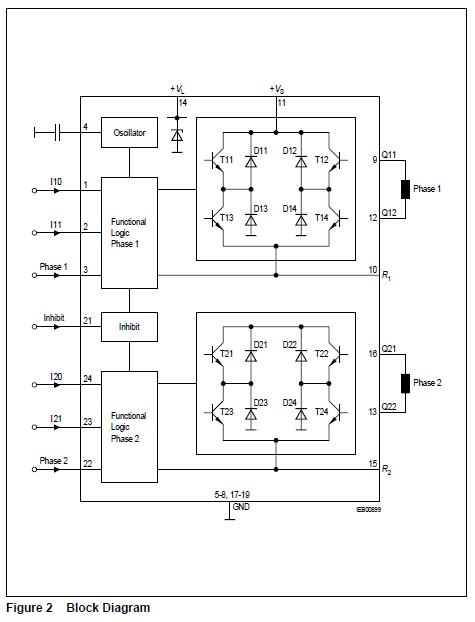

The TLE4726G is a bipolar, monolithic IC for driving bipolar stepper motors, DC motors and other inductive loads that operate on constant current. The control logic and power output stages of TLE4726G are integrated on a single chip which permits switched current control of motors with 0.75 A per phase at operating voltages up to 50 V.

Parametrics

TLE4726G absolute maximum ratings: (1)Supply voltage: 0 to 52 V; (2)Logic supply voltage: 0 to 6.5 V; (3)Z-current of VL: 50 mA; (4)Output current: – 1 to 1 A; (5)Ground current: – 2 to 2 A; (6)Logic inputs: – 6 to VL + 0.3 V; (7)R1, R2, oscillator input voltage: – 0.3 to VL + 0.3 V; (8)Junction temperature: 125 to 150 ℃; (9)Storage temperature: – 50 to 125 ℃.

Features

TLE4726G features: (1)2×0.75 A / 50 V outputs; (2)Integrated driver, control logic and current control (chopper); (3)Fast free-wheeling diodes; (4)Low standby-current drain; (5)Full, half, quarter, mini step.
