Product Summary

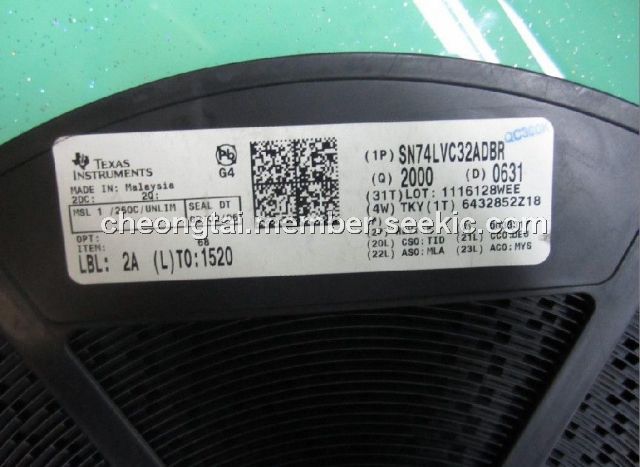

The SN74LVC32ADBR is a quadruple 2-input positive-OR gate. It is designed for 1.65V to 3.6V VCC operation.
Parametrics
Absolute maximum ratings: (1)Supply voltage range:-0.5V to 6.5V; (2)nput voltage range:-0.5V to 6.5V; (3)Output voltage range:-0.5V to VCC+0.5V; (4)input clamp current(VI<0):-50mA; (5)Output clamp current(VO<0):-50mA; (6)Continuous output current:±50mA; (7)Package thermal impedance:96℃/W; (8)storage temperature range:-65℃ to 150℃; (9)power dissipation:500mW.
Features
Features: (1)Operate From 1.65 V to 3.6 V; (2)Specified From -40℃ to 85℃,-40℃ to 125℃, and -55℃ to 125℃; (3)Inputs Accept Voltages to 5.5 V; (4)Max t pd of 3.8 ns at 3.3 V; (5)Typical V OLP (Output Ground Bounce) <0.8 V at VCC=3.3V, TA=25℃; (6)Typical V OHV (Output V OH Undershoot)>2V at VCC=3.3V,TA=25℃; (7)Latch-Up Performance Exceeds 250 mA Per JESD 17.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74LVC32ADBR |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Quad 2-Input. |
Data Sheet |
|
|
||||||||||||
|
SN74LVC32ADBRG4 |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Quadruple 2-Input Positive-OR Gate |
Data Sheet |
|
|
||||||||||||
