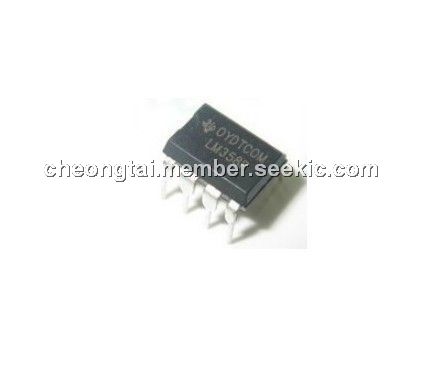

LM358P

low-power dual operational amplifier, 700KHZ, 8DIP, LM358P, 3 V to 32 V, 2 nA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.02~0.06 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.02~0.06

PartNumber:: LM358P

Brand:: Texas Instruments - TI | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Cheongtai's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-02-15

From Other Seller

Part Number:LM358P
US $0.02 - 0.06
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
MJ16018

US $1.80 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

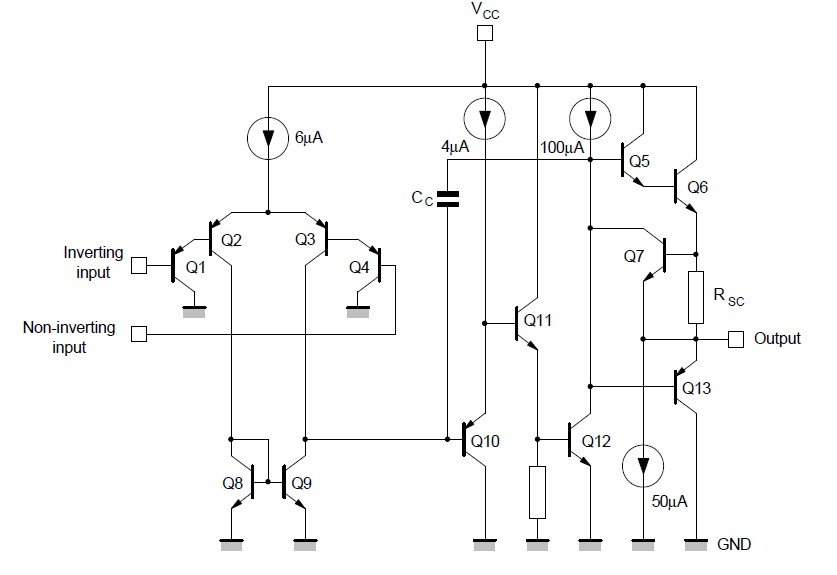

The LM358P is a low power dual operational amplifier. The circuit consists of two independent, high gain, internally frequency compensated which was designed specifically to operate from a single power supply over a wide range of voltages. The low power supply drain is independent of the magnitude of the power supply voltage.

Parametrics

LM358P absolute maximum ratings: (1)VCC Supply voltage: +/-16 or 32 V; (2)Vi Input Voltage: -0.3 to +32 V; (3)Vid Differential Input Voltage: +32 V; (4)Ptot Power Dissipation: 500 mW; (5)Output Short-circuit Duration: Infinite; (6)Iin Input Current: 50mA; (7)Toper Opearting Free-air Temperature Range: -40 to +105℃; (8)Tstg Storage Temperature Range: -65 to +150 ℃.

Features

LM358P features: (1)Internally frequency compensated; (2)Large dc voltage gain: 100dB; (3)Wide bandwidth (unity gain): 1.1MHz (temperature compensated); (4)Very low supply current/op (500μA) essentially independent of supply voltage; (5)Low input bias current: 20nA (temperature compensated); (6)Low input offset voltage: 2mV; (7)Low input offset current: 2nA; (8)Input common-mode voltage range includes ground; (9)Differential input voltage range equal to the power supply voltage; (10)Large output voltage swing 0v to (Vcc - 1.5V).
