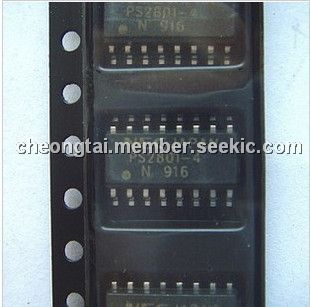

PS2801-4

optically coupled isolator, 16-SSOP, 2500Vrms, 50mA, PS2801-4, NEC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.13~116.56 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.13~116.56

PartNumber:: PS2801-4

Brand:: NEC - Nec | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Cheongtai's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-18

From Other Seller

Part Number:PS2801-4
US $0.13 - 116.56
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The PS2801-4 is an optically coupled isolator containing a GaAs light emitting diode and an NPN silicon phototransistor in a plastic SOP for high density applications. This package has shield effect to cut off ambient light. The applications of the PS2801-4 include: Programmable logic controllers, Measuring instruments, Power supply, Hybrid IC.

Parametrics

PS2801-4 absolute maximum ratings: (1)Diode: Forward Current (DC), IF: 50 mA; Reverse Voltage, VR: 6 V; Power Dissipation Derating, △PD/℃: 0.8 mW/℃; Power Dissipation, PD: 80 mW/ch; Peak Forward Current, IFP: 1 A; (2)Transistor: Collector to Emitter Voltage, VCEO: 80 V; Emitter to Collector Voltage, VECO: 6 V; Collector Current, IC: 50 mA/ch; Power Dissipation Derating, △PC/℃: 1.2 mW/℃; Power Dissipation, PC: 120 mW/ch; (3)Isolation Voltage, BV: 2500 Vr.m.s.; (4)Operating Ambient Temperature, TA: -55 to +100 ℃; (5)Storage Temperature, Tstg: -55 to +150 ℃.

Features

PS2801-4 features: (1)High isolation voltage (BV = 2 500 Vr.m.s.); (2)Small and thin package (4,16-pin SOP, Pin pitch 1.27 mm); (3)High collector to emitter voltage (VCEO = 80 V); (4)High-speed switching (tr = 3 ms TYP., tf = 5 us TYP.); (5)UL approved: File No. E72422 (S); (6)VDE0884 approved (Option): PS2801-4 only; (7)Operating number of taping product: PS2801-1-F3, F4, PS2801-4-F3, F4.
