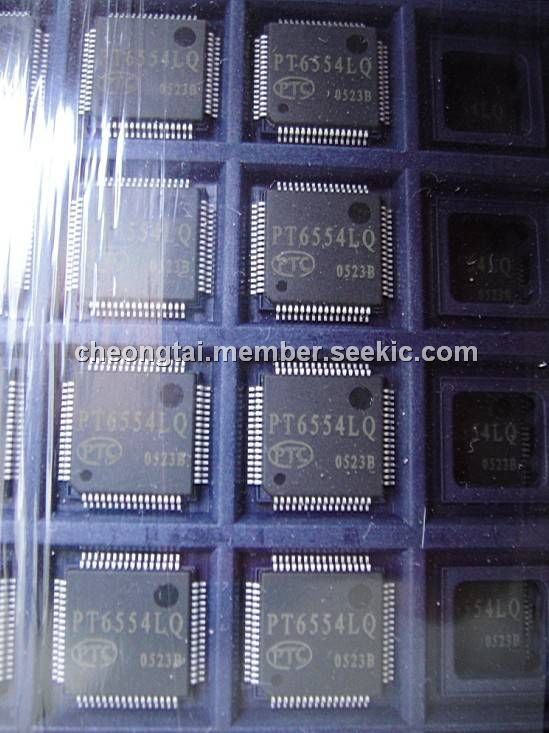

PT6554LQ

LCD Driver IC, QFP, CMOS technology

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.76~0.92 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.76~0.92

PartNumber:: PT6554LQ

Brand:: Princeton Technology Corp - PTC | Pack: DIP | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Cheongtai's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-05-08

From Other Seller

Part Number:PT6554LQ
US $0.76 - 0.92
IRF3205

US $0.80 - 2.50 / Piece
(0) Remove
SIL9030CTU

US $2.50 - 5.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

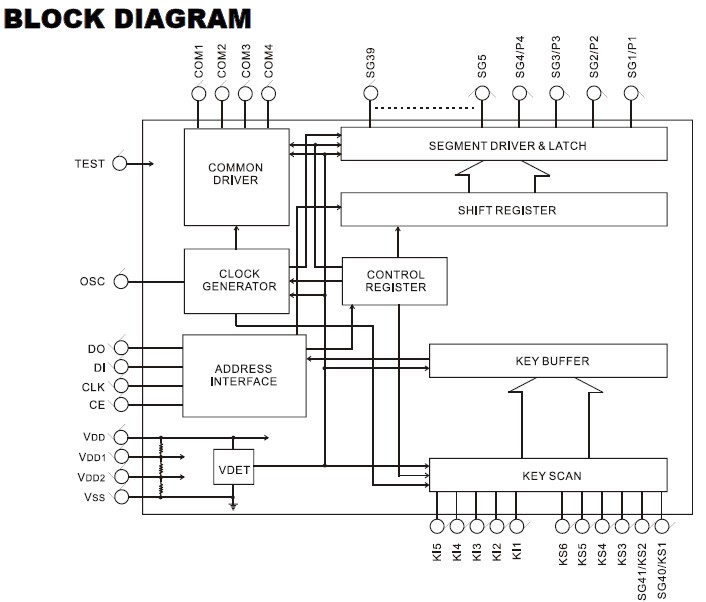

The PT6554LQ is a high performance Liquid Crystal Display (LCD) Driver IC utilizing CMOS technology specially designed with Key Input function. It can drive up to a maximum of 164 segments and control up to 4 general purpose output ports. It includes a Key Scan Circuit that can support up to 30 key inputs and provides On-Chip Voltage Detection Type Reset Circuit which prevents incorrect display. Display Data can be directly displayed without using any decoder. The PT6554LQ also supports both 1/4 duty-1/2 bias and 1/4 duty-1/3 bias drive techniques. Pin assignments and application circuit are optimized for easy PCB Layout and cost saving advantages.

Parametrics

Absolute maximum ratings: (1)Maximum supply voltage, VDDmax at VDD: -0.3 to +7.0 V; (2)Input voltage: VIN1 at CE, CLK, DI: -0.3 to +7.0 V; VIN2 at OSC, KI1 to KI5, TEST, VDD1, VDD2: -0.3 to VDD +0.3 V; (3)Output voltage: VOUT1at DO: -0.3 to +7.0 V; VOUT2 at OSC, SG1 to SG41, COM1 to COM4, P1 to P4: -0.3 to VDD +0.3 V; (4)Output current: IOUT2 at SG1 to SG41: 300 μA; IOUT3 at COM1 to COM4: 3 mA; IOUT4 at KS1 to KS6: 1 mA; IIN1at P1 to P4: 5 mA; (5)Allowable power dissipation, Pd max at Ta = 85℃: 200 mW; (6)Operating temperature, Topr: -40 to +85 ℃; (7)Storage temperature, Tstg: -65 to +150 ℃.

Features

Features: (1)CMOS technology; (2)Up to 164 segment drivers (4 Com x 41 Seg); (3)Up to 4 general purpose output ports; (4)Key input function; (5)1/4 duty-1/2 bias and 1/4 duty-1/3 bias drive techniques; (6)Sleep mode & all segment OFF function; (7)On-Chip voltage detection type reset circuit; (8)RC oscillation circuit; (9)Available in 64 pins, QFP or LQFP package.
