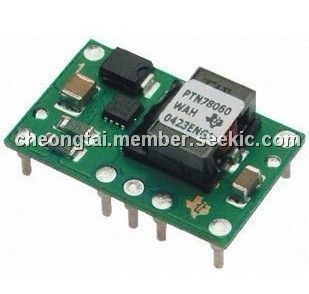

PTN78060WAH

step-down integrated switching regulator, 2.5 to 12.6V, 3A, DIP-7, 45 W

Rated 5 Rating 5 | reviews | Write a review

Price:: US $10.30~14.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $10.30~14.20

PartNumber:: PTN78060WAH

Brand:: Texas Instruments - TI | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Cheongtai's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-02-22

From Other Seller

Part Number:PTN78060WAH
US $10.30 - 14.20
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

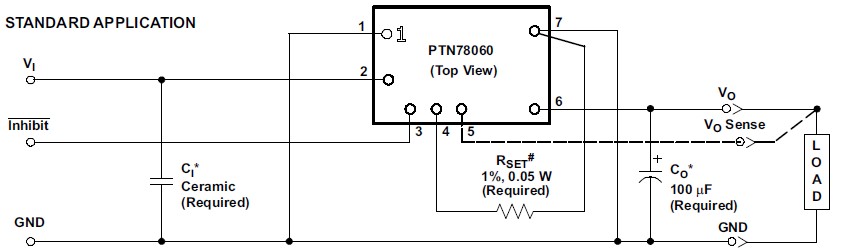

Product Summary

The PTN78060WAH is a high-efficiency, step-down integrated switching regulator (ISR), that represents the third generation in the evolution of the popular (PT)78ST200, 78ST300, (PT)78HT200, and 78HT300 series of products. In new designs, the PTN78060WAH may also be considered in place of the PT6200, PT6210, and PT6300 series of single in-line pin (SIP) products. In all cases, the device has either similar or improved electrical performance characteristics. The PTN78060WAH has undervoltage lockout, an integral on/off inhibit, and includes an output current limit and overtemperature protection. It is used in General-Purpose, Industrial Controls, HVAC Systems, Test and Measurement, Medical Instrumentation, AC/DC Adaptors, Vehicles, Marine, and Avionics.

Parametrics

PTN78060WAH absolute maximum ratings: (1)TA Operating free-air temperature: –40℃ to 85℃; (2)Solder reflow temperature: 235℃; (3)Tstg Storage temperature: –40℃ to 125℃; (4)VI Input surge voltage, 10 ms maximum: 38 V; (5)V(Inhibit) Inhibit (pin 3) input voltage: –0.3 V to 5 V; (6)PO Output power: 45 W.

Features

PTN78060WAH features: (1)3-A Output Current; (2)Wide-Input Voltage(7 V to 36 V) / (15 V to 36 V); (3)Wide-Output Voltage Adjust(2.5 V to 12.6 V) / (11.85 V to 22 V); (4)High Efficiency (Up to 96%); (5)On/Off Inhibit; (6)Under-Voltage Lockout; (7)Output Current Limit; (8)Overtemperature Shutdown; (9)Operating Temperature: -40℃ to 85℃; (10)Surface Mount Package Available.
