PIC16F628A-I/P

Product Summary

The PIC16F628A-I/P is a flash-based 8-bit CMOS microcontroller with nanowatt technology. It has enhanced core features, an eight-level deep stack, and multiple internal and external interrupt sources. The separate instruction and data buses of the Harvard architecture allow a 14-bit wide instruction word with the separate 8-bit wide data. The PIC16F628A-I/P has integrated features to reduce external components, thus reducing system cost, enhancing system reliability and reducing power consumption. The PIC16F628A-I/P has 8 oscillator configurations. The single-pin RC oscillator provides a low-cost solution.

Parametrics

PIC16F628A-I/P absolute maximum ratings: (1)Ambient temperature under bias: -40 to +125℃; (2)Storage temperature: -65 to +150℃; (3)Voltage on VDD with respect to VSS: -0.3 to +6.5V; (4)Voltage on MCLR and RA4 with respect to VSS: -0.3 to +14V; (5)Voltage on all other pins with respect to VSS: -0.3V to VDD + 0.3V; (6)Total power dissipation: 800 mW; (7)Maximum current out of VSS pin: 300 mA; (8)Maximum current into VDD pin: 250 mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD): ± 20 mA; (10)Output clamp current, IOK (Vo < 0 or Vo >VDD): ± 20 mA; (11)Maximum output current sunk by any I/O pin: 25 mA; (12)Maximum output current sourced by any I/O pin: 25 mA; (13)Maximum current sunk by PORTA and PORTB (Combined): 200 mA; (14)Maximum current sourced by PORTA and PORTB (Combined): 200 mA.

Features

PIC16F628A-I/P features: (1)Operating speeds from DC – 20 MHz; (2)Interrupt capability; (3)8-level deep hardware stack; (4)Direct, Indirect and Relative Addressing modes; (5)35 single-word instructions: All instructions single cycle except branches; (6)Power-saving Sleep mode; (7)Programmable weak pull-ups on PORTB; (8)Multiplexed Master Clear/Input-pin; (9)Watchdog Timer with independent oscillator for reliable operation; (10)Low-voltage programming; (11)In-Circuit Serial Programming(via two pins); (12)Programmable code protection; (13)Brown-out Reset; (14)Power-on Reset; (15)Power-up Timer and Oscillator Start-up Timer ; (16)Wide operating voltage range (2.0-5.5V); (17)Industrial and extended temperature range.

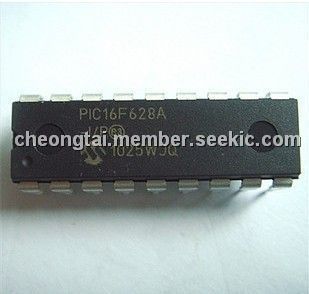

Diagrams
