Product Summary

The SPW21N50C3 is a cool MOS power transistor. Its package is P-T0247.

Parametrics

Absolute maximum ratings: (1)Continuous drain current, ID: 21A when TC=25℃; 13.1A when TC = 100℃; (2)Pulsed drain current, tp limited by Tjmax, ID puls: 63A; (3)Avalanche energy, single pulse ID = 10A, VDD = 50V, EAS: 690mJ; (4)Avalanche energy, repetitive tAR limited by Tjmax ID = 21A, VDD = 50V, EAR: 1mJ; (5)Avalanche current, repetitive tAR limited by Tjmax, IAR: 21A; (6)Reverse diode dv/dt IS=21A, VDS=480V, Tj=125℃, dv/dt: 6V/ns; (7)Gate source voltage, VGS: ±20V; (8)Gate source voltage AC (f >1Hz), VGS: ±30V; (9)Power dissipation, TC = 25℃, Ptot: 208W; (10)Operating and storage temperature, Tj , Tstg: -55 to +150℃.

Features

Features: (1)New revolutionary high voltage technology; (2)Ultra low gate charge; (3)Periodic avalanche rated; (4)Extreme dv/dt rated; (5)Ultra low effective capacitances; (6)Improved transconductance.

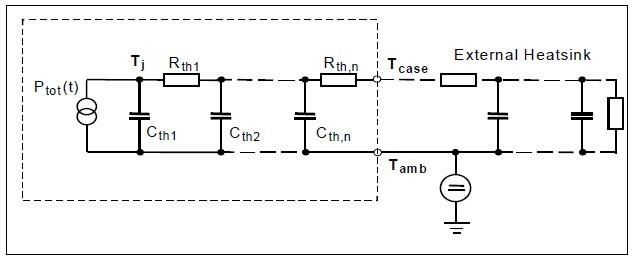

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SPW21N50C3
SPW21N50C3
Infineon Technologies
MOSFET COOL MOS PWR TRANS 560V 21A
Data Sheet
0-1: $2.72
1-25: $2.18
25-100: $1.99
100-250: $1.79
