SN74AUCH16244DGGR

16-bit buffer/driver, 16BIT, 48TSSOP, 0.8 V ~ 2.7 V, 9mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.16~3.18 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.16~3.18

PartNumber:: SN74AUCH16244DGGR

Brand:: Texas Instruments - TI | Pack: TSSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Cheongtai's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-04

From Other Seller

Part Number:SN74AUCH16244DGGR
US $0.16 - 3.18
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

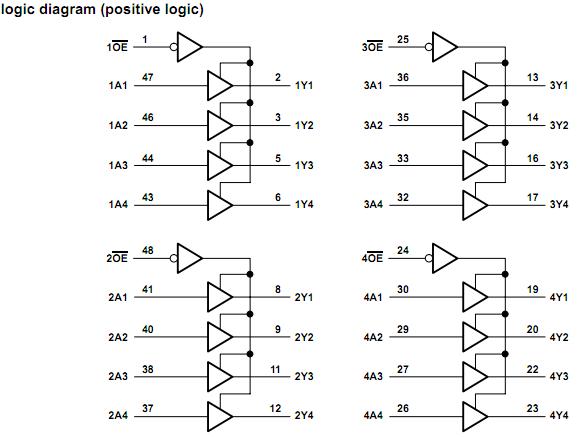

The SN74AUCH16244DGGR is a 16-bit buffer/driver. It is operational at 0.8-V to 2.7-V VCC. The SN74AUCH16244DGGR is designed specifically for 1.65-V to 1.95-V VCC operation. The SN74AUCH16244DGGR is designed specifically to improve the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.

Parametrics

SN74AUCH16244DGGR absolute maximum ratings: (1)Supply voltage range, VCC: –0.5 V to 3.6 V; (2)Input voltage range, VI: –0.5 V to 3.6 V; (3)Voltage range applied to any output in the high-impedance or power-off state, VO: –0.5 V to 3.6 V; (4)Output voltage range, VO: –0.5 V to VCC + 0.5 V; (5)Input clamp current, IIK (VI < 0): –50 mA; (6)Output clamp current, IOK (VO < 0): –50 mA; (7)Continuous output current, IO: ±20 mA; (8)Continuous current through VCC or GND: ±100 mA; (9)Package thermal impedance, θJA : DGG package 70℃/W.

Features

SN74AUCH16244DGGR features: (1)Member of the Texas Instruments Widebus Family; (2)Optimized for 1.8-V Operation and is 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation; (3)Ioff Supports Partial-Power-Down Mode Operation; (4)Sub 1-V Operable; (5)Max tpd of 1.8 ns at 1.8 V; (6)Low Power Consumption, 20-μA Max ICC; (7)±8-mA Output Drive at 1.8 V; (8)Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors; (9)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II; (10)ESD Protection Exceeds JESD 22.
