Product Summary

The LM393DR is a dual differential comparator. The LM393DR consists of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible as long as the difference between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs of the LM393DR can be connected to other open-collector outputs to achieve wired-AND relationships.

Parametrics

LM393DR absolute maximum ratings: (1)Supply voltage, VCC: 36 V; (2)Differential input voltage, VID: ±36 V; (3)Input voltage range, VI (either input): 0.3 V to 36 V; (4)Output voltage, VO: 36 V; (5)Output current, IO: 20 mA; (6)Duration of output short-circuit to ground: Unlimited; (7)Package thermal impedance, θJC: FK package: 5.61℃/W; (8)JG package: 14.5℃/W; (9)Operating virtual junction temperature, TJ:150℃; (10)Case temperature for 60 seconds: FK package: 260℃; (11)Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds: JG package: 300℃; (12)Storage temperature range, Tstg: 65℃ to 150℃.

Features

LM393DR features: (1)Single Supply or Dual Supplies; (2)Low Supply-Current Drain Independent of Supply Voltage: 0.4 mA Typ Per; (3)Comparator. Low Input Bias Current 25 nA Typ. Low Input Offset Current 3 nA Typ; (4)Low Input Offset Voltage 2 mV Typ; (5)Common-Mode Input Voltage Range Includes Ground; (6)Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage ±36 V; (7)Low Output Saturation Voltage; (8)Output Compatible With TTL, MOS, and CMOS.

Diagrams

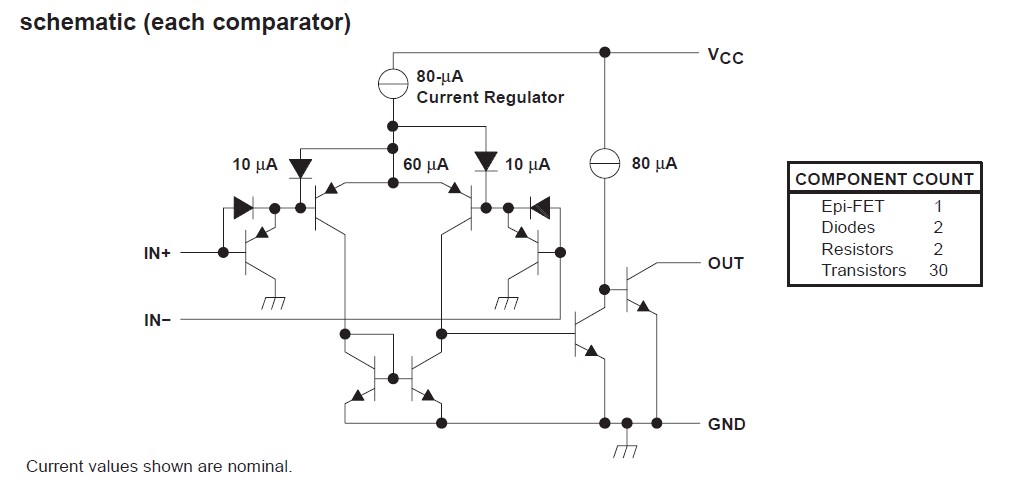

LM393DR diagram
