Product Summary

The TFP410PAP is a Texas Instruments PanelBus flat panel display product, part of a comprehensive family of end-to-end DVI 1.0-compliant solutions, targeted at the PC and consumer electronics industry. The TFP410PAP provides a universal interface to allow a glue-less connection to most commonly available graphics controllers. Some of the advantages of this universal interface include selectable bus widths, adjustable signal levels, and differential and single-ended clocking. The adjustable 1.1V to 1.8V digital interface provides a low-EMI, high-speed bus that connects seamlessly with 1 bit or 24bit interfaces. The DVI interface supports flat panel display resolutions up to UXGA at 165 MHz in 24-bit true color pixel format.

Parametrics

Absolute maximum ratings: (1)Serial Data Transmitter Channels: 3; (2)Number of Parallel Inputs: 24; (3)PLL Frequency(MHz): 25 to 165; (4)Data Throughput(MB/s): 495; (5)ICC(mA): 250; (6)Operating Temperature Range(℃): 0 to 70; (7)Supply Voltage(s)(V): 3.3; (8)Pin/Package: 64HTQFP.

Features

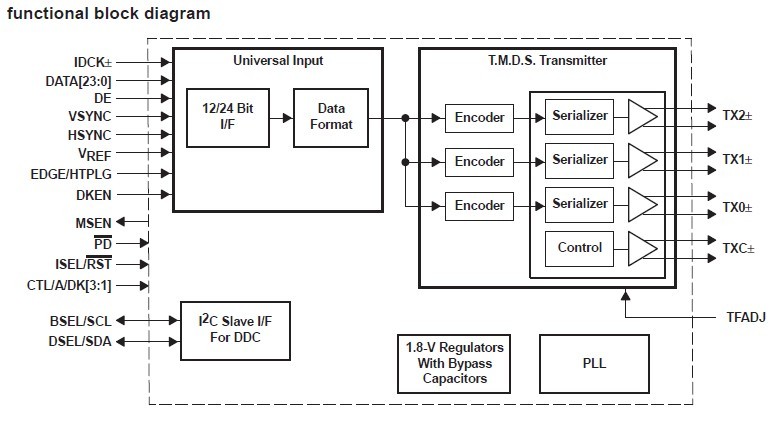

Features: (1)Digital Visual Interface (DVI) Compliant; (2)Supports Resolutions From VGA to UXGA (25 MHz to 165 MHz Pixel Rates); (3)Universal Graphics Controller Interface; (4)Enhanced PLL Noise Immunity; (5)Enhanced Jitter Performance; (6)Programmable Using I2C Serial Interface; (7)Monitor Detection Through Hot Plug and Receiver Detection; (8)Single 3.3V Supply Operation; (9)64-Pin TQFP Using TIs PowerPAD Package; (10)TIs Advanced 0.18 um EPIC-5 CMOS Process Technology; (11)Pin Compatible With SiI164 DVI Transmitter.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TFP410PAPG4
TFP410PAPG4
Texas Instruments
Display Interface IC PanelBus Transmitter
Data Sheet
0-1: $3.95
1-25: $3.34
25-100: $3.06
100-250: $2.79
TFP410PAP
TFP410PAP
Texas Instruments
Display Interface IC PanelBus DVI Transmitter 165MHz
Data Sheet
0-1: $3.91
1-25: $3.64
25-100: $3.29
100-250: $3.02
