Product Summary
The TLV0834IDR is an 8-bit successive-approximation analog-to-digital converter, each with an input-configurable multichannel multiplexer and serial input/output. The TLV0834IDR (4-channel) multiplexer is software-configured for single-ended or differential inputs as well as pseudodifferential input assignments. The TLV0834IDR is characterized for operation from 0℃ to 70℃.
Parametrics
TLV0834IDR absolute maximum ratings: (1)Supply voltage, VCC: 6.5 V; (2)Input voltage range: Logic: –0.3 V to VCC + 0.3 V; Analog: –0.3 V to VCC+ 0.3 V; (3)Input current, II: ±5 mA; (4)Total input current: ±20 mA; (5)Operating free-air temperature range, TA: C suffix: 0℃ to 70℃; I suffix: –40℃ to 85℃; (6)Storage temperature range, Tstg: –65℃ to 150℃; (7)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: N package: 260℃.
Features
TLV0834IDR features: (1)8-Bit Resolution; (2)2.7-V to 3.6-V VCC; (3)Easy Microprocessor Interface or Stand-Alone Operation; (4)Operates Ratiometrically or With VCC Reference; (5)4- or 8-Channel Multiplexer Options With Address Logic; (6)Input Range 0 V to VCC With VCC Reference; (7)Remote Operation With Serial Data Link; (8)Inputs and Outputs Are Compatible With TTL and MOS; (9)Conversion Time of 32 ms at f(CLK) = 250 kHz; (10)Functionally Equivalent to the ADC0834 and ADC0838 at 3-V Supply Without the Internal Zener Regulator Network; (11)Total Unadjusted Error: ±1 LSB.

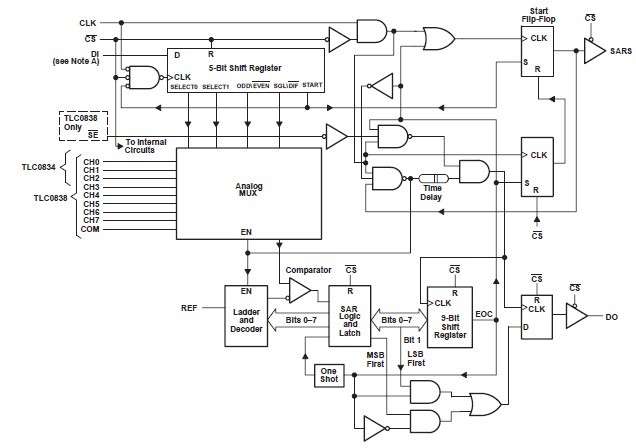

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLV0834IDR |
Texas Instruments |
ADC (A/D Converters) 8-Bit 41 kSPS Serial Out |
Data Sheet |
|
|
||||||||
|
TLV0834IDRG4 |
Texas Instruments |
ADC (A/D Converters) 8-Bit 41 kSPS Serial Out |
Data Sheet |
|
|
||||||||
