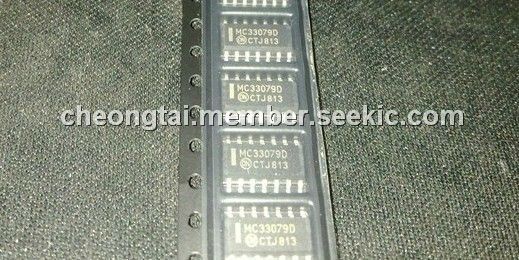

MC33079DR2G

monolithic quad operational amplifier, 14SOIC, 8.4mA, 16MHz, 10 V to 36 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~0.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.20~0.40

PartNumber:: MC33079DR2G

Brand:: ON Semiconductor - ON | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Cheongtai's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-01

From Other Seller

Part Number:MC33079DR2G
US $0.20 - 0.40
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MC33079DR2G is a monolithic quad operational amplifier particularly well suited for audio applications. It offers low voltage noise (4.5 nV/√Hz) and high frequency performance (15 MHz gain bandwidth product, 7 V/μs slew rate). In addition the MC33079DR2G has a very low distortion (0.002%) and excellent phase/gain margins. The output stage allows a large output voltage swing and symmetrical source and sink currents.

Parametrics

MC33079DR2G absolute maximum ratings: (1)VCC, Supply voltage: ±18 or +36 V; (2)Vid, Differential input voltage: ±30 V; (3)Vi, Input voltage: ±15 V; (4)Tj, Junction temperature: +150 ℃; (5)Tstg, Storage temperature: -65 to +150℃; (6)Rthja, Thermal resistance junction to ambient: 105 ℃/W; (7)Rthjc, Thermal resistance junction to case: 31℃/W; (8)ESD, HBM: human body model: 2kV; MM: machine model: 200 V; CDM: charged device model: 1.5 kV.

Features

MC33079DR2G features: (1)Low voltage noise: 4.5 nV/√Hz; (2)High gain bandwidth product: 15 MHz; (3)High slew rate: 7 V/μs; (4)Low distortion: 0.002%; (5)Large output voltage swing: +14.3 V/-14.6 V; (6)Excellent frequency stability; (7)ESD protection 2 kV; (8)Macromodel included in this specification.
